All Products ➞ Threaded Inserts ➞ Nes® ➞ NES Thread Restorers ➞ Kits

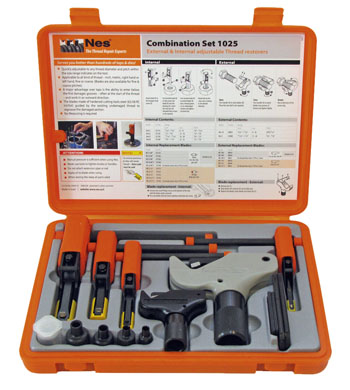

Combination Thread Restorer Kit
| Part Number: | 3507-01025 |
| Brand: | NES |
| Barcode: | 603446010253 |
| Angle (degrees): | 60º |
| Thread Type: | Internal & External |
| Set no.: | SET 1025 |
About this item:
- 01025 Combination Thread Restorer Kit
- They do not require calibration.
- Self adjusting to any size and pitch within tool range.
- Hardened HSS cutting blades for long tool service life.
- Tool uses undamaged section of thread to guide cutting blades during repair to damaged areas.
- Removes rust and burrs.
- Quick to set up and simple to use.
- Spare cutting blades are available in 60° and 55° flank angles.
- Repairs a wide range of sizes Internal 8mm to 108mm, External 4mm - 152mm.
- Nylon pads are available for NES 21 through to NES 24 internal tools and are to be used during the repair of threads in aluminium and other soft metals.
- NES Nylon Pads are produced from top quality polyamide resins which provide superior toughness, resilience and outstanding mechanical properties over a wide range of operating environments.
Components:
| Part Number | Title | Quantity | |
|---|---|---|---|
| 3507-NES1A | NES 1A External Thread Restorer suits sizes 4.00-18.00mm (5/32-11/16), up to 7/16" Pipe | 1 | |
| 3507-NES2 | NES 2 External Thread Restorer suits sizes 17.00-38.00mm (11/16-1.1/2), 3/8-1.1/8" Pipe | 1 | |
| 3507-NES21 | NES 21 Internal Thread Restorer suits sizes 8.00 - 11.00mm (5/16 - 7/16) | 1 | |
| 3507-NES22 | NES 22 Internal Thread Restorer suits sizes 12.00 - 16.00mm (1/2 - 5/8) | 1 | |
| 3507-NES23 | NES 23 Internal Thread Restorer suits sizes 16.00 - 20.00mm (11/16 - 13/16) | 1 | |
| 3507-NES24 | NES 24 Internal Thread Restorer suits sizes 22.00 - 32.00mm (7/8 - 1-1/4) | 1 | |
| 3507-00010 | 1 | ||
| 3507-00030 | 1 | ||
| 3507-07216 | 1 | ||
| 3507-07226 | 1 | ||
| 3507-07236 | 1 | ||
| 3507-07246F | 1 |
